The Series

The Ultra Extreme Generation II Series is guaranteed to outperform any cable regardless of price.
The Heavens Gate Audio design team has spent a substantial amount of time and effort to research the most effective and innovative materials and cable constructions for high performance audio systems.
The culmination of this research has led to the introduction of the Ultra Extreme Generation II Series - a reference series that delivers the highest level of system performance available.

The Ultra Extreme Generation II Series can be called the most advanced line of audio cables that has ever been designed. It features the unusual talent to be highly valued by the sticklers of digital audio as well as analog enthusiasts.
Through the utilization of our unique long-crystal-structure Silver-Gold / Silver-Copper and pure 4N-Silver-conductors insulated with Air-Foam-PFA, this series represents the finest in music signal transfer between two components. It also implements an unsurpassed complexity of shielding methods and passive filter networks.

Up to 16 conductors are arranged into a special Matrix to control the inductance and the capacitance of the cable.
Five different shields are used to protect the signal against unwanted noise.

The plugs used for the Ultra Extreme Generation II Series offer Oxygen Free Copper contacts, silver plated and rhodium plated. This series of handcrafted audio cables made in Germany offers the highest degree of transparency, detail, a lower noise floor and more extension and air than other audio cables in the market.

The Ultra Extreme Generation II Series truly creates a stunning level of performance in transparency, timbre, precise imaging, micro- and macro-dynamic freedom, detailed bass sounds and articulation that is unprecedented within any other audio cable.


Basic Features

OHNO Silver-Gold Conductors
Air-Foam-PFA insulation
Tesla Coil treatment
cryogenic treatment
quad-matrix-design
Active-Shield-Matrix construction
99,99% pure copper contacts
rhodium-over-silver plated (PVD technology)





SPECIFICATIONS

OHNO Silver-Gold Conductors
Air-Foam-PFA insulation
Tesla Coil treatment
cryogenic treatment
coaxial (75 Ohm) / twisted-pair (110 Ohm) / 3 x twisted-pair (USB)
Active-Shield-Matrix construction
99,99% pure copper contacts
rhodium-over-silver plated (PVD technology)
RCA, XLR, USB type A, USB type B)

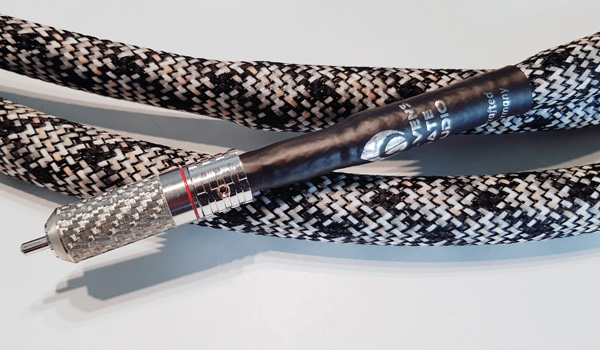

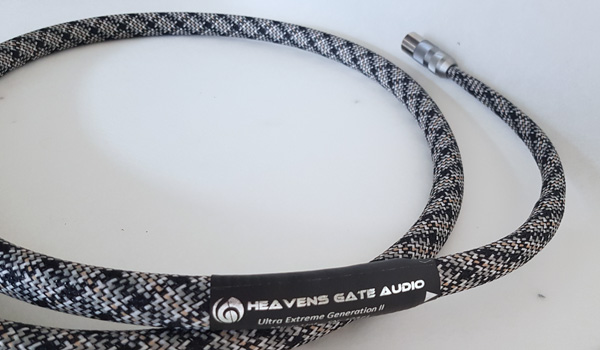

Digital Links

The Ultra Extreme Gen. II Digital Link continues not only our long tradition for manufacturing excellent digital interconnects, it brings the performance one huge step closer to the breathtaking realism of live-music.
It is not only an audible difference you will experience with these Digital Links, it is something else: your brain 'transports' you directly to a live-concert or into a symphony hall rather than into a 'virtual audio space'.
It has not only been our goal to touch your ears, we let you feel the emotions encapsulated in your recordings.

Heavens Gate Audio is the first company in the audio industry using OHNO casting Silver-Gold conductors and the Ultra Extreme Gen. II Digital Links are truly the finest digital interconnects money can buy.

The 75 Ohm version uses a massive solid core conductor to minimize the reflections within the conductor up to 1.5 GHz. Right after the conductor is drawn the surface is polished under an oxygen-free atmosphere to avoid any kind of oxidation or air-traps.

The 110 Ohm Version uses two litz-constructed conductors and allows a reflection free transmission of digital signals up to 1.9 GHz. Each litz has 36 individual conductors drilled to a special helix.

The next step is the insulation of the conductors. For the lower priced series PTFE (Teflon®) or PFA are used. For the Ultra Extreme Gen. II Series we have gone one step further. Whenever a conductor is insulated, this insulation stores and releases a part of the signal energy, resulting in audible distortion. To insulate the conductors used for this Reference Series Heavens Gate Audio invented a new material: Air-Foam-PFA®
This material is as close to "air" as possible, it stores very low energy of the signal and releases this energy extremely fast in a very linear way. In addition, Air-Foam-PFA has excellent damping properties to minimize the mechanical resonances.

A total of five different shields, each one optimized for the diameter it is used for and separated by insulation build the Active-Shield-Matrix to protect the signal against any noise pollution such as RFI, EMI and ESI*.

The Ultra Extreme Gen. II Digital Link is terminated with heavy non-magnetic connectors (rhodium over silver plated pure copper).
Careful and computer-controlled pulse welding techniques prevent any change of the conductor's structure when terminated to the plugs.

The Ultra Extreme Gen. II Series is entirely made by hand by a small number of special trained technicians with painstaking care, and measured over and over for uniform performance as it is built.

These fine audio jewels will bring years of reliability and emotional satisfaction and are covered by a lifetime warranty to the original owner.

Music Links

Designed to both enhance and preserve the spatial and accurate tonal qualities of recorded music, the Ultra Extreme Gen. II Interconnect reaches a new level of performance.
Two versions are available: a single-ended version (RCA or Phono) and a balanced version XLR or Phono).
Based on our legendary Silver Signature Interconnect, the Ultra Extreme Gen. II is the most neutral and accurate interconnect cable we have ever designed.
Neither warm, nor cool sounding, the hallmark of this cable's sonic qualities is found in its neutrality.

The construction of the Ultra Extreme Gen. II Interconnect relies on the highest grade of materials, shielding technologies, low absorption dielectric and exceptional workmanship.
The 'center' is comprised of 8 massive, OHNO casting Silver-Gold Conductors carefully aligned into a 4x2-Matrix. Each conductor is insulated using our proprietary Air-Foam-PFA®. This combination allows us to control the inductance, capacitance and resistance of the cable resulting in a full bodied natural sound while maintaining excellent high frequency characteristics.

One of the problems we have found with most audio interconnect cables is a lack of a full-bodied sound at low listening levels resulting in a "thin" mid bass which is unnatural in live music. Not so with this series of musical masterpieces!
The Ultra Extreme Gen. II Series was an entirely new product for Heavens Gate Audio. After several years of intensive research in our lab and countless hours of listening, we have developed completely new approaches to conductor design, insulation materials, and damping and shielding technology.
Heavens Gate Audio's Reference Series is intended for use with the finest professional and home music installations.



SPECIFICATIONS

OHNO Silver-Gold Conductors
Air-Foam-PFA insulation
Tesla Coil treatment
cryogenic treatment
double quad matrix design
Active-Shield-Matrix construction
99,99% pure copper contacts
rhodium-over-silver plated (PVD technology)
RCA, XLR, 5-pin Phono




SPECIFICATIONS

16 OHNO Silver-Gold Conductors
Air-Foam-PFA insulation
Tesla Coil treatment
cryogenic treatment
4 x quad matrix design
Active-Shield-Matrix construction
99,99% pure copper contacts
rhodium-over-silver plated (PVD technology)
Spade, Banana

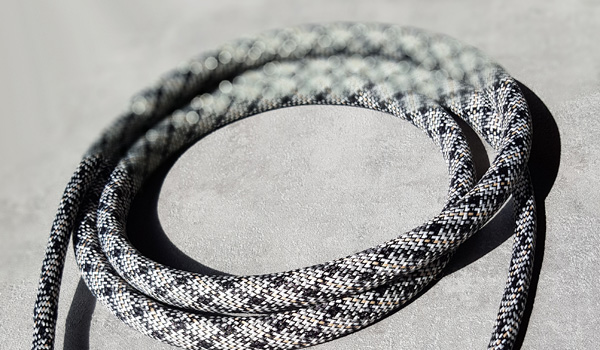

Speaker Links

Designed to couple the output of the very best power amplifiers to state-of-the-art loudspeakers, the Ultra Extreme Gen. II Speaker Link will bring you closer to the music than any other loudspeaker cable.
It is the most neutral and accurate loudspeaker cable we have ever built. Take this as a fact.

The construction of this Speaker Link relies on the highest grade of materials, shielding technologies, low absorption dielectric and exceptional workmanship.
The 'center' is comprised of 16 massive, OHNO casting Silver-Gold conductors carefully aligned into a 4x4-Matrix. Each conductor has a polished surface and is insulated using our proprietary Air-Foam-PFA®. This combination allows us to control the inductance, capacitance and resistance of the cable resulting in a full-bodied natural sound while maintaining excellent high frequency characteristics.
A total of five shields, each one optimized for the diameter it is used for and separated by insulation build the Active-Shield-Matrix to protect the signal against any noise pollution such as EMI, ESI and RFI.
The Ultra Extreme Gen. II Speaker Link is terminated with heavy non-magnetic rhodium-over-silver plated copper connectors: 7/9mm Spades or Banana plugs. Careful pulse welding techniques at a low temperature prevent any change of the conductor's structure when terminated to the plugs.

A/C Links

It is easy to suggest a product is state-of-the-art. It is far more difficult to create a product that actually is state-of-the-art.
The Ultra Extreme Gen. II AC Links are, in fact, State-Of-The-Art in every respect. No other power cable in the world even approaches the technology, the features and most importantly, the performance of the Ultra Extreme Gen. II AC Link.

The core of the Ultra Extreme Gen. II AC Links is a handmade 4x3-Matrix using the finest conductors available today: Air-Foam-PFA® insulated OHNO casting Silver-Gold conductors carefully aligned by hand.
Each conductor has a polished surface and is insulated using our proprietary Air-Foam-PFA®.

The Ultra Extreme Gen. II AC Link is more than just an AC cable. It is designed to be used without any additional filter-systems as it "works" as a filter.
The construction can be described as a passive inductive filter network that works in three ways:
1. It absorbs the noise pollution (RFI) coming from the outside.
2. It minimizes the electromagnetic interference (EMI) and electrostatic interference (ESI) inside the cable and
3. most important, it filters the high frequency noise generated by the component it is connected to.

A total of six shields, each one optimized for the diameter it is used for and separated by insulation build the Active-Shield-Matrix to protect the signal against any noise pollution such as EMI, ESI and RFI.
The Ultra Extreme AC Link is terminated with the best connectors available today: rhodium-over-silver-plated Schuko, U.S. and IEC connectors.
This new level of cable design brings you the full realization of the performance we intended with this series.




SPECIFICATIONS

12 OHNO Silver-Gold Conductors (16 for the AMP-VERSION)
Air-Foam-PFA insulation
Tesla Coil treatment
cryogenic treatment
triple quad matrix design
Active-Shield-Matrix construction
99,99% pure copper contacts
rhodium-over-silver plated (PVD technology)
U.S., Schuko, 16 Amp., 20 Amp.


Picture Gallery

1 / 9
2 / 9
3 / 9
4 / 9
5 / 9
6 / 9
7 / 9
9 / 9

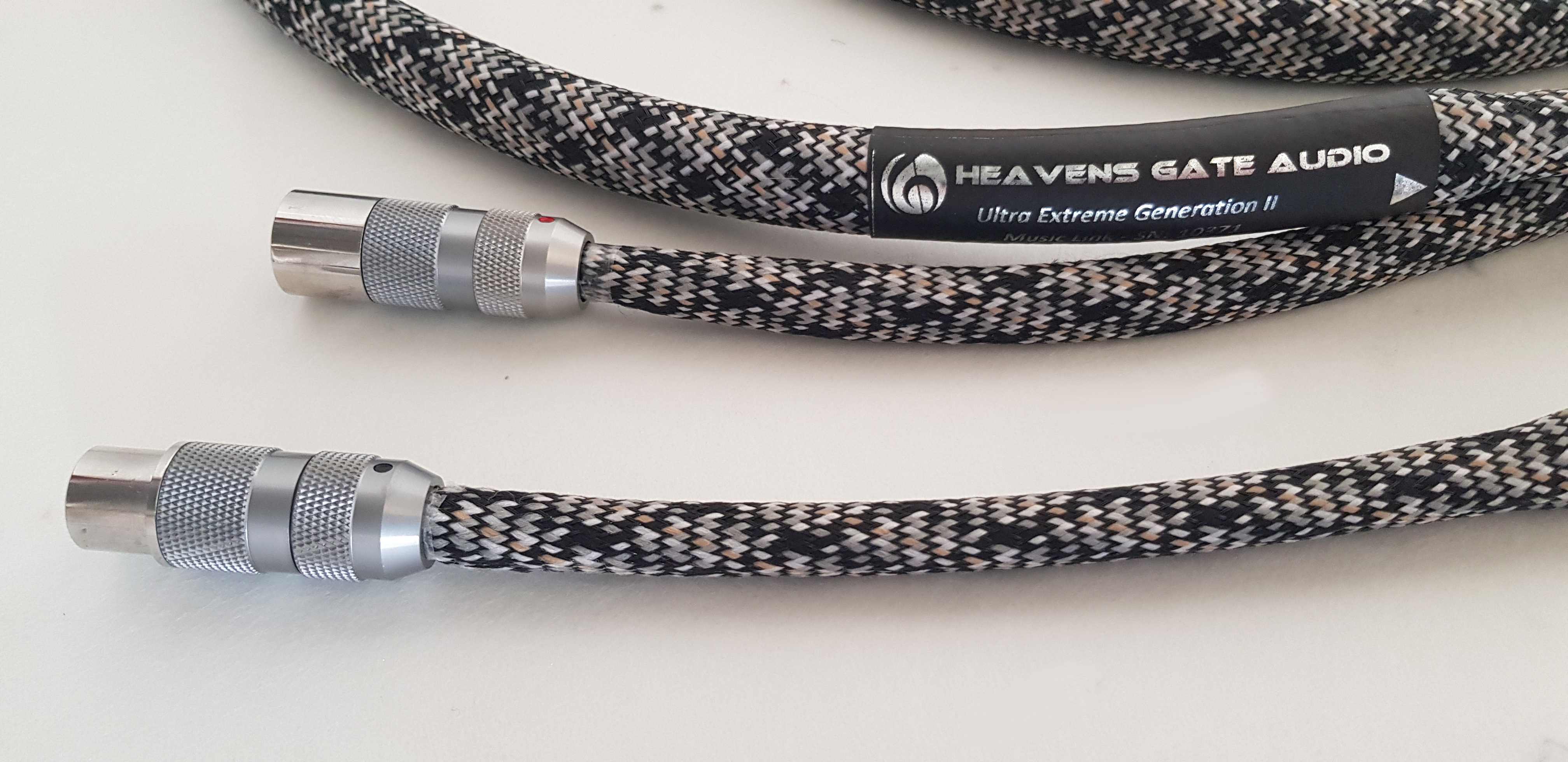

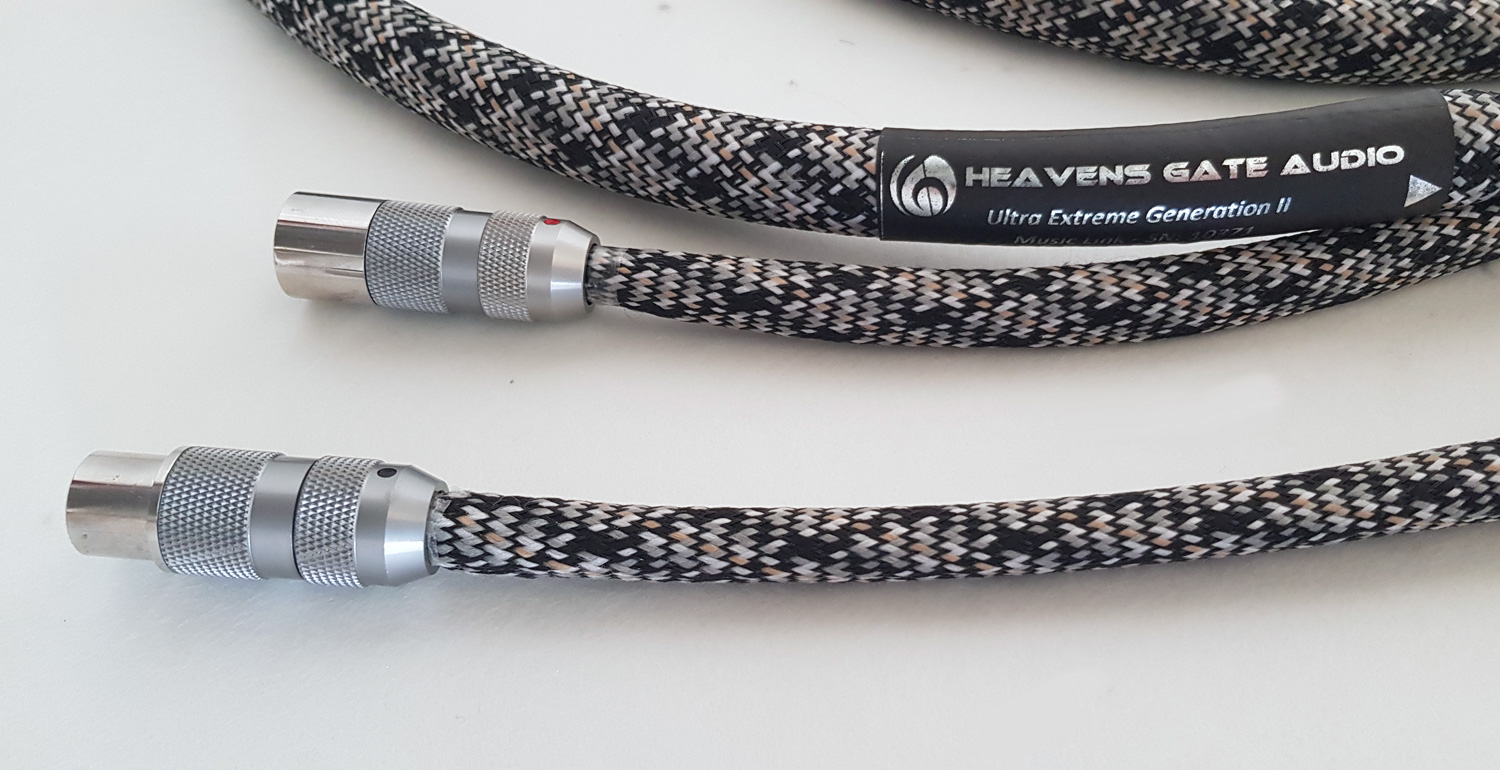

Ultra Extreme Gen. II Music Link XLR

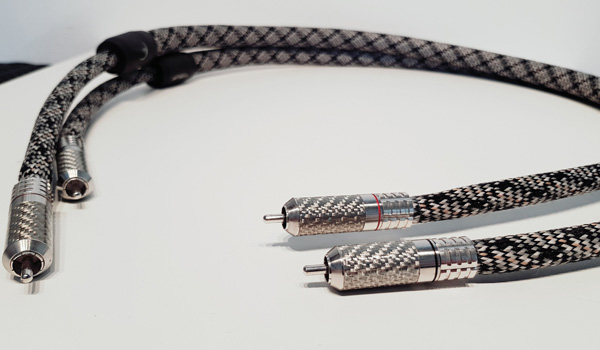

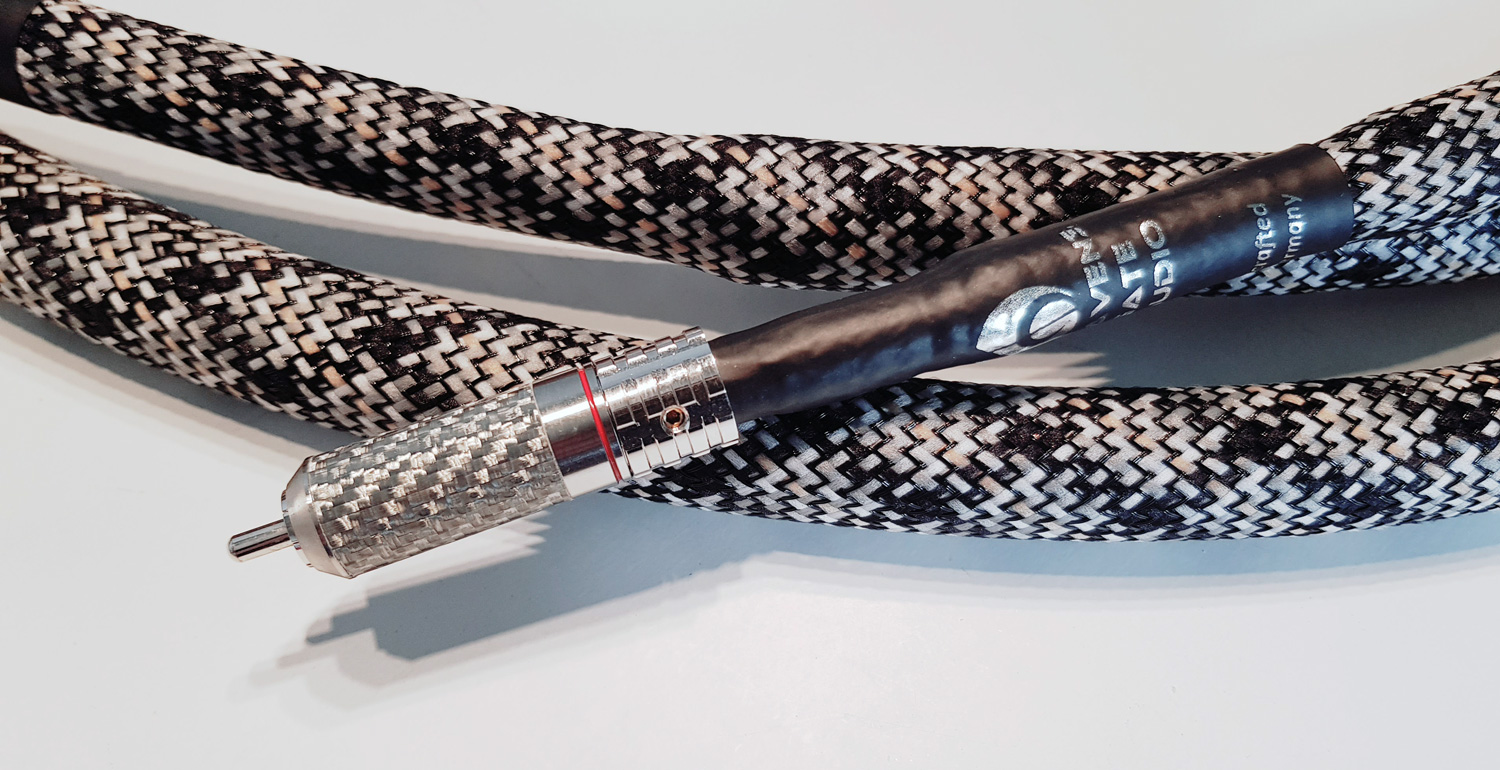

Ultra Extreme Gen. II Music Link Link RCA
Ultra Extreme Gen. II Music Link XLR
Ultra Extreme Gen. II Music Link Link RCA
Ultra Extreme Gen. II Music Link XLR
Ultra Extreme Gen. II Music Link Link RCA
Ultra Extreme Gen. II Music Link XLR
Ultra Extreme Gen. II Music Link Link RCA
Ultra Extreme Gen. II Music Link XLR

Pricing

Digital Links

RCA

1.00 Meter

2.000,00 EUR

XLR

1.50 Meter

2.500,00 EUR

BNC

2.00 Meter

3.000,00 EUR

USB

2.50 Meter

3.500,00 EUR

3.00 Meter

4.000,00 EUR

add. 0.50 Meter

500,00 EUR



Music Links

RCA

1.00 Meter

4.000,00 EUR

XLR

1.50 Meter

5.000,00 EUR

Phono

2.00 Meter

6.000,00 EUR

2.50 Meter

7.000,00 EUR

3.00 Meter

8.000,00 EUR

add. 0.50 Meter

1.000,00 EUR



Speaker Links

Spade

1.00 Meter

4.000,00 EUR

Banana

1.50 Meter

5.000,00 EUR

2.00 Meter

6.000,00 EUR

2.50 Meter

7.000,00 EUR

3.00 Meter

8.000,00 EUR

add. 0.50 Meter

1.000,00 EUR



Bi.Wire Jumper

Spade - Banana

0.20 Meter

2.000,00 EUR



A/C Links

Schuko

1.50 Meter

2.750,00 EUR

U.S.

2.00 Meter

3.500,00 EUR

16 Amp.

2.50 Meter

4.250,00 EUR

20 Amp.

3.00 Meter

5.000,00 EUR

add. 0.50 Meter

750,00 EUR



A/C Links AMP-VERSION

Schuko

1.50 Meter

3.500,00 EUR

U.S.

2.00 Meter

4.500,00 EUR

16 Amp.

2.50 Meter

5.500,00 EUR

20 Amp.

3.00 Meter

6.500,00 EUR

add. 0.50 Meter

1.000,00 EUR
